FIMCO LG25PM ATV SPRAY TANK 95L Including 2, 5 Or 7 NOZZLE BOOM KIT

95 L spray tank for quad bikes, ATV, mules and medium tractors

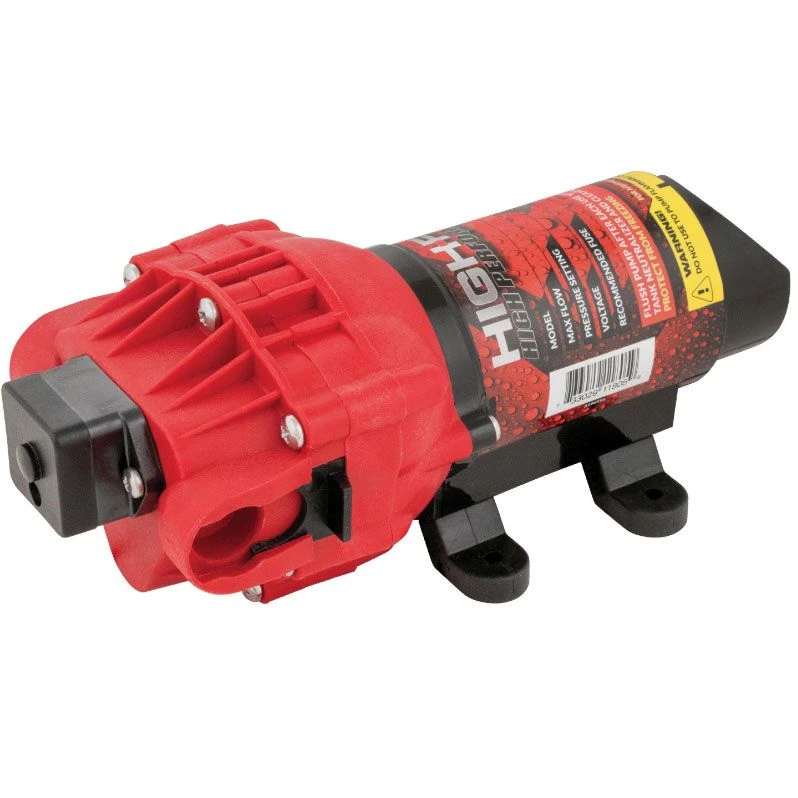

9 L/min (2.4 gallon/min) 60 Psi High Flo spray pump – big enough for all spray booms reaching out to 3.8m width

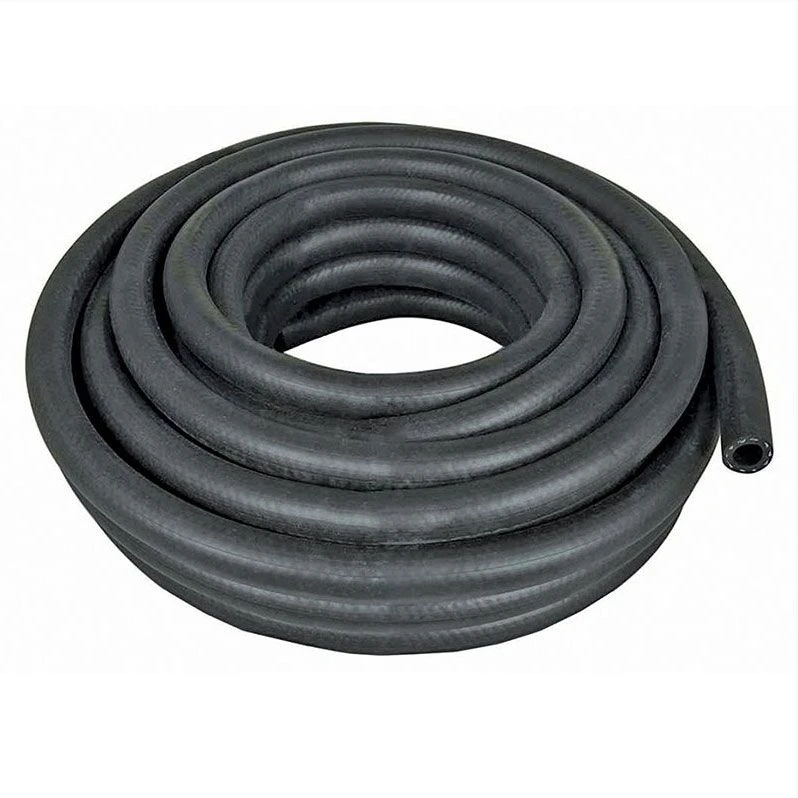

Includes 5m flexible hose & hand lance for demounted and spot spraying – sprays out to 10m



Fimco LG25PM ATV Spray Tank Key Points:

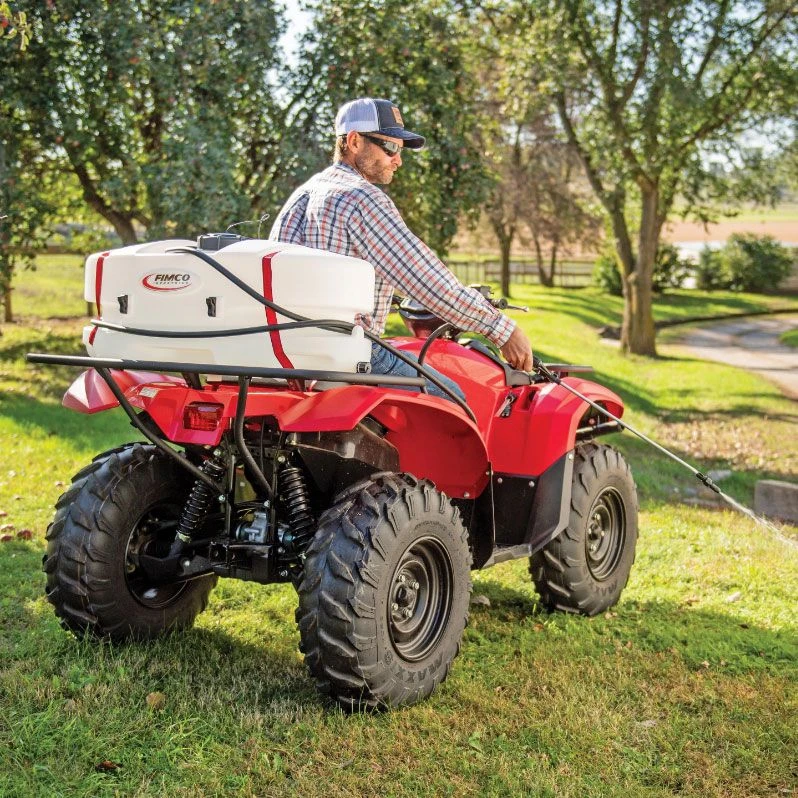

• Fits on the front or rear panniers of a quad bike or ATV with ratchet strap (not supplied)
• 125mm tank lid for easy filling and drain plug for easy emptying
• Suitable for adding: 2 nozzle, 5 nozzle & 7 nozzle quick release booms for paddock, lawn and field spraying

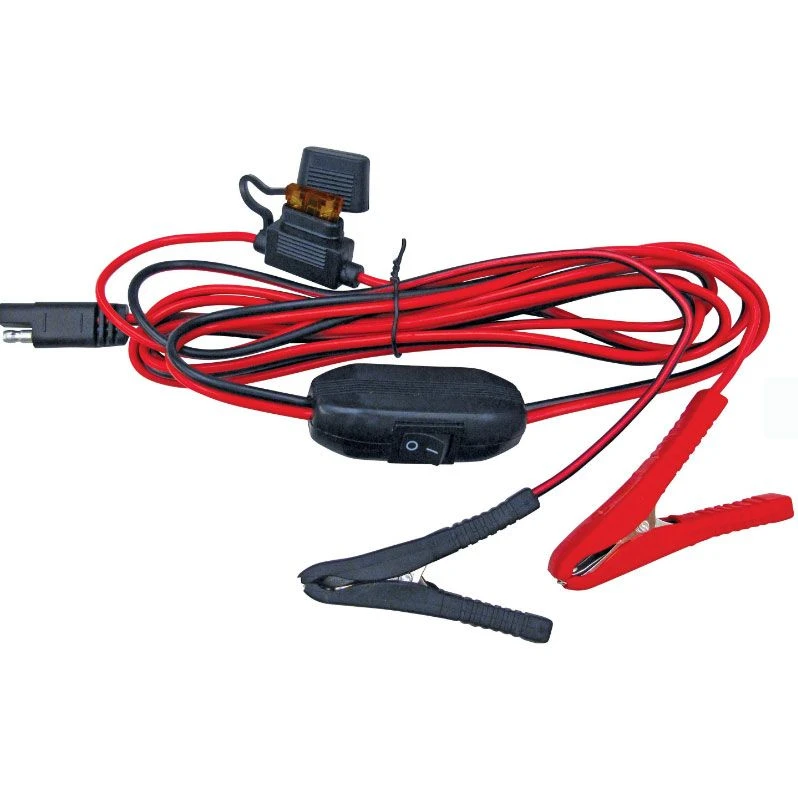

• Crocodile clips for easy attachment to vehicle battery and an in-line switch for on/off

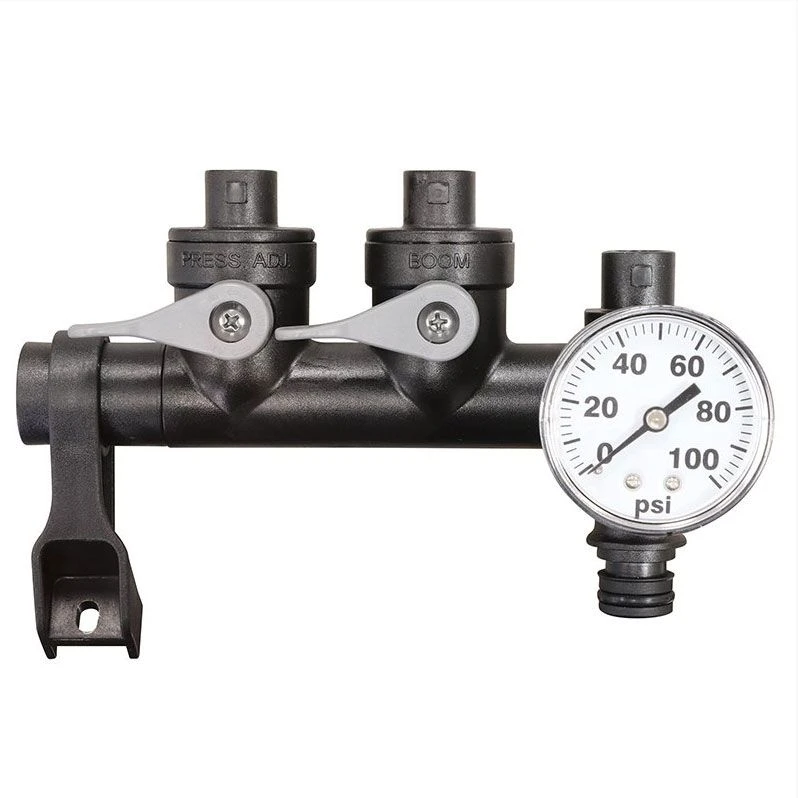

• Visual, adjustable pressure gauge and handy clip for neat spray handgun storage on the tank
• Pump manifold for selecting between boom & hand lance



Sprayer Electrical System Requirements:

• Electrical connection: 12V DC
• 4m quick connection electrical leads with in-line on/off switch



Sprayer Specification:

• Maximum flow: 9 L/min
• Maximum pressure: 60 PSi
• Maximum tank capacity: 95 litre
• 1000 (length) x 370 (width) x 400 (height)

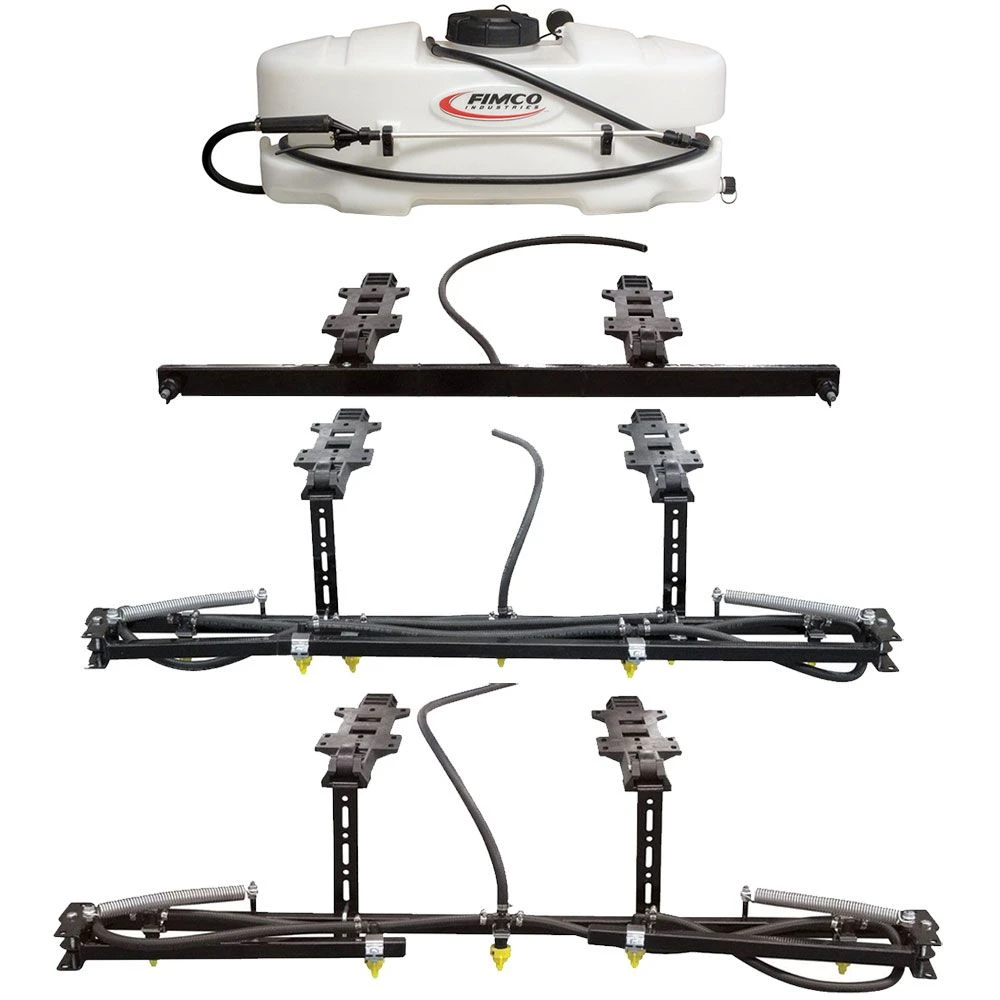

Two, five and seven nozzle boom key notes:

• 2 nozzle boom produces a spray pattern of approx 2m width. Fitted with 110 degree wide angle spray tip nozzles
• 5 nozzle boom produces a spray pattern of approx 2.5m width. Fitted with Air Induction low drift nozzles for safer spray application
• 7 nozzle booms allows spray pattern of approx 3.5m width. Fitted with Air Induction, low drift nozzles for safer spray application
• Each boom folds in to a compact 1.3m length
• All booms fitted with mesh, check valve filters, 50#
• Quick release fitting means demounting or attaching is quick & easy. No need to lift the whole tank.
• Wider 5 & 7 nozzle booms are foldable with spring loaded ‘break-back’ arms
• Actual length of boom is shorter than the spray width
• Ideal for the application of pesticides, herbicides and soluble fertilisers
• Comes with hose and boom mounted fitting kit suitable for ATV’s or similar
• Optimum boom height 50-60cm above ground to ensure nozzle overlap and a full spray pattern
• Requires some assembly
